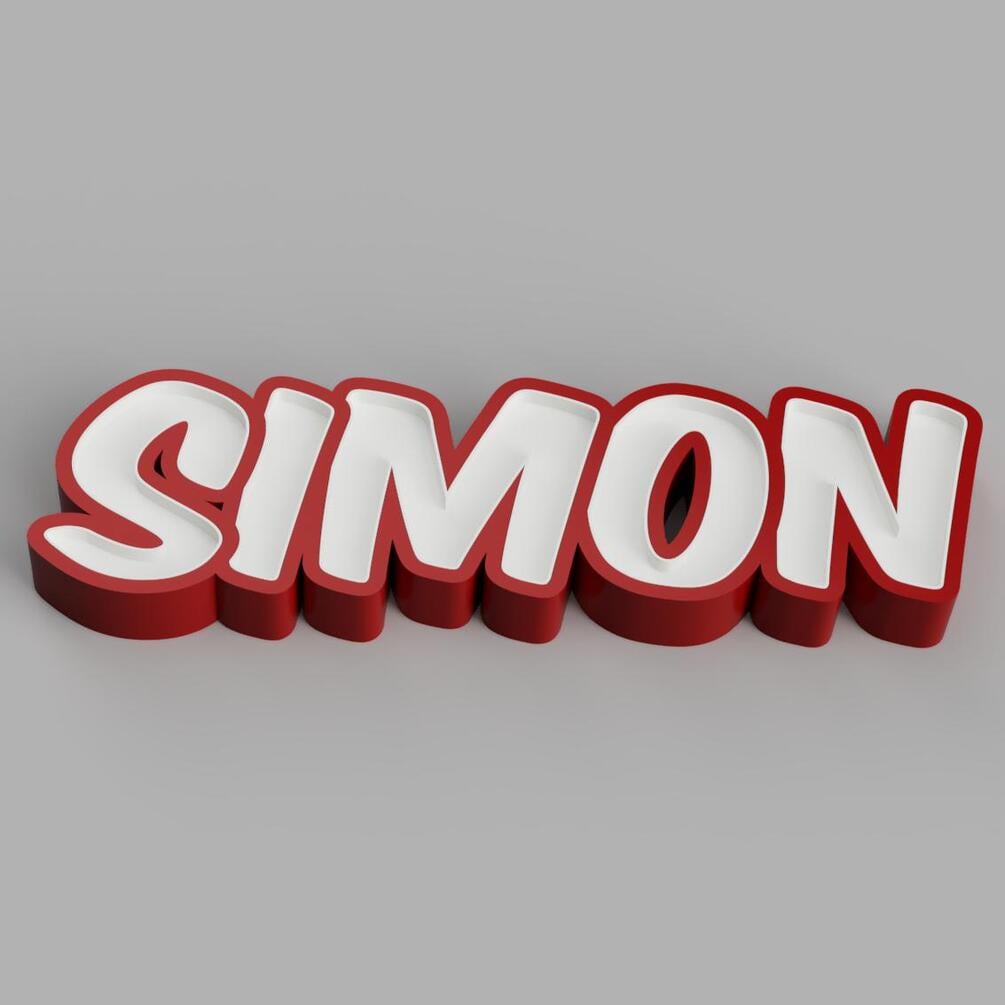

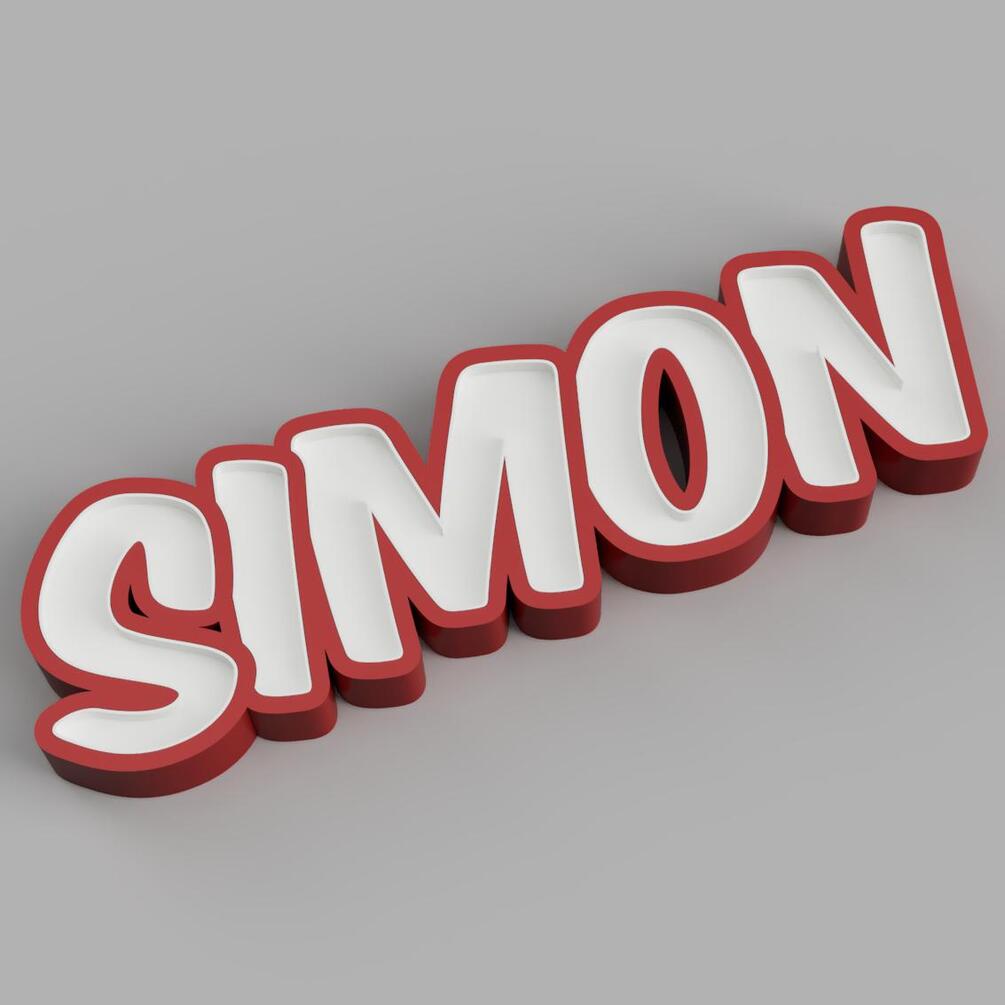

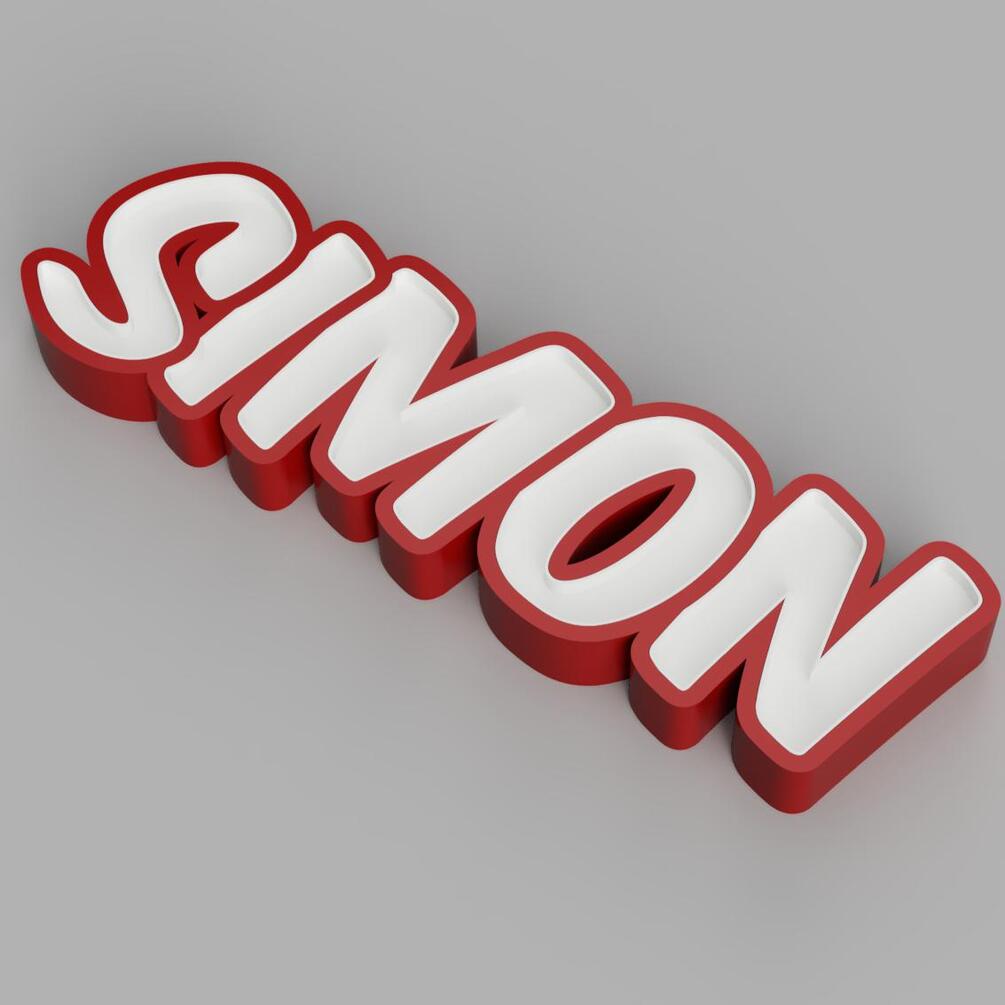

SIMON LED LAMP 3D PRINTING STL (NAMELED)

A modular lamp that can have integrated LED strips. You can choose a control system with a command or even via WI-FI on your mobile phone.

Print all the letters separately, so it fits well on a normal printer, and then glued with plastic glue on the identified inserts in a very simple way.

The letter covers are printed on a clear material, which is translucent and illuminates. Cover parts are not glued, they are just fitted.

Leds must be glued to the inner wall of the letters and pass between them in the existing holes.

The entire printing is prepared with printing clearances, so that there are no problems.

One letter have different versions, to allow different electrical connections. An existing hole on the side, behind, support for command with 3 buttons or even without a hole to be able to drill wherever you want, or even use the letters only as an ornament, without light.

Size: 14cm height (5.51 in)

CUSTOMIZING ANOTHER NAME

If you want another personalized name with a Nameled lamp, contact by email to [hstudio.pt@gmail.com](mailto:hstudio.pt@gmail.com) and indicate the name you want. The name will be quickly created to be able to print.

Can see here all names already available: [Creations](https://cults3d.com/en/users/HStudio3D/creations)

---

Summary of Assembly Steps:

1. Print letter one by one (fit in your printer without problems)

2. Print letter covers one by one (white or translucent)

3. Glue the letters in the correct order and in the existing notch

4. Glue a led strip to the inner edge, passing through the channels (Led 5050 model).

5. Make an electrical connection according to the model you are going to use.

6. Press the covers in place (they have a tolerance)

7. Place on the table or hang

8. Enjoy the magic.

---

A fast video to show the final part of assembly: https://youtu.be/XRLiO2gVfuo

To help, I leave here the indication of some parts that I use in the project:

- [Led strips with control and transformer (complete solution) - Aliexpress] (https://s.click.aliexpress.com/e/_Anod2t)

- [Remote Control and strip controller for 5050 led strip - Amazon](https://amzn.to/3fBfqJJ)

- [Plastic Glue](https://amzn.to/2ZhHlVu)

- [Command 3 Buttons - Aliexpress](https://s.click.aliexpress.com/e/_AT34yv) or [Here](https://s.click.aliexpress.com/e/_9GfReh)

---

3D PRINTING SETTINGS

Infill - 8%

Height - 0.3mm (nozzle 4mm) or 0,4mm (nozzle 6mm - preferred)

Opaque color for letters, white color for covers.

---

About the difference between Wall and Table

In the wall version all the letters are just side by side, at the same plan. So you can use it on a wall, and it looks fine. You can also put it on a table, but it's easier to fall.

in a version table, letters have a step of 8mm that glues in the back of the previous letter. This way give a 3d aspect, don't fall so easy, but is not ok to put on the wall :)
